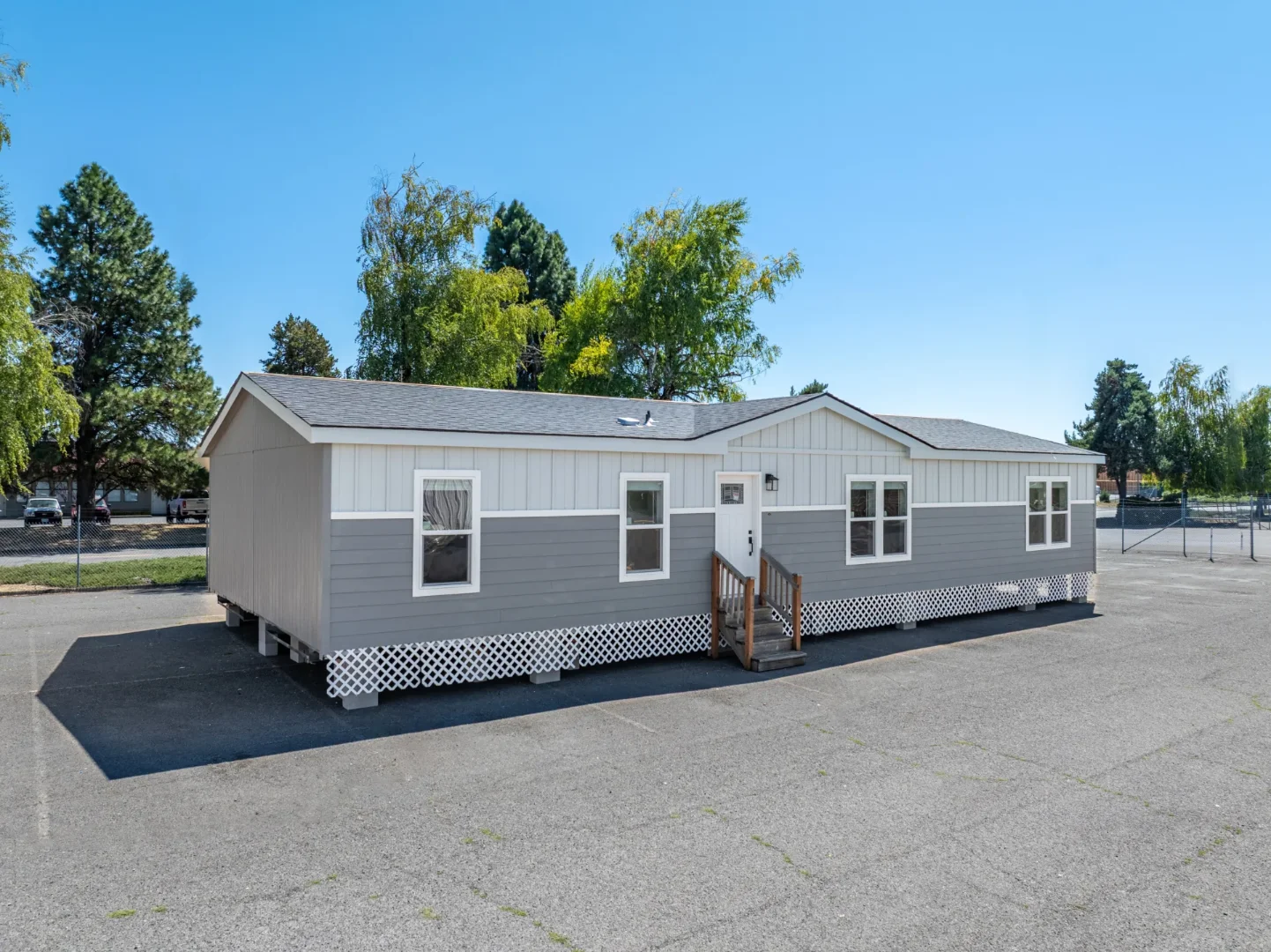

About This Home

Construction Insulation: R40 Ceiling, R21 Walls, R33 Floors, Energy Star Standard Windows: Low-E vinyl windows with argon gas Floor Joists: 2 x 6 16″ O.C. Floor Decking: 4′ x 8′ x 19/32″ tongue and groove OSB Exterior Siding: LP SmartSide Panel Sidewall Construction: 2 x 6 at 16″ OC / 96 ” Height – Flat Ceiling Roof Load: 20 pound with trusses 24″ on center Exterior Window Trim: 4″ Trim all sides Front Entry Door: 36″ Inswing Craftsman with Harper Handles Rear Entry Door: 32″ 9 lite door Shingles: Architectural shingles with Limited Lifetime Warranty Eaves & Overhang: 6″ Sidewalls and end walls. 12″ optional. Perforated soffit. Dormers & Exterior Trim: Standard 18′ dormer Roof Pitch: 3/12 DW Set Back Frame (Foundation Ready): Optional Mechanical Bedroom Lighting: Recessed LED can light Dining Room Lighting: Recessed LED can light Kitchen Lighting: Recessed LED Can light – Black rattan pendants from LaSalle Exterior Lights: Black Coach Lights – both front and back doors Bathroom Lighting: Recessed LED Cans Wire & Brace for Ceiling Fan(s): Standard in living room TV/Phone Boxes – Rough in With Raceways – Not Wired: Optional Electrical Service Main Panel: 200 AMP Master Bath Tub/Shower: Free standing tub with faucet mounted on the tub. 60″ shower pan with Jet Coat Slate shower walls and black grid shower door. Guest Bath Tub / Shower: 60″ fiberglass tub/shower Bath Sinks & Toilets: China and elongated toilet Bath Sink Faucets & Tub/Shower Faucets: Single Lever Lav Faucet, Matte Black Bathroom Mirrors: 24″ x 42″ over sinks with matte black molded frames Towel Bar/ Tissue Holders: Optional Kitchen Sink: Single Bowl Stainless Kitchen Faucet: Black single lever Plumb for Washing Machine: Standard Wire for Clothes Dryer: Standard Shut-Off Valves: Individual Standard. Whole House optional Exterior Water Faucet: Optional in pre-determined locations Heating System: Electric forced air furnace and ducts. Standard digital set back thermostate Water Heater: 50 Gallon

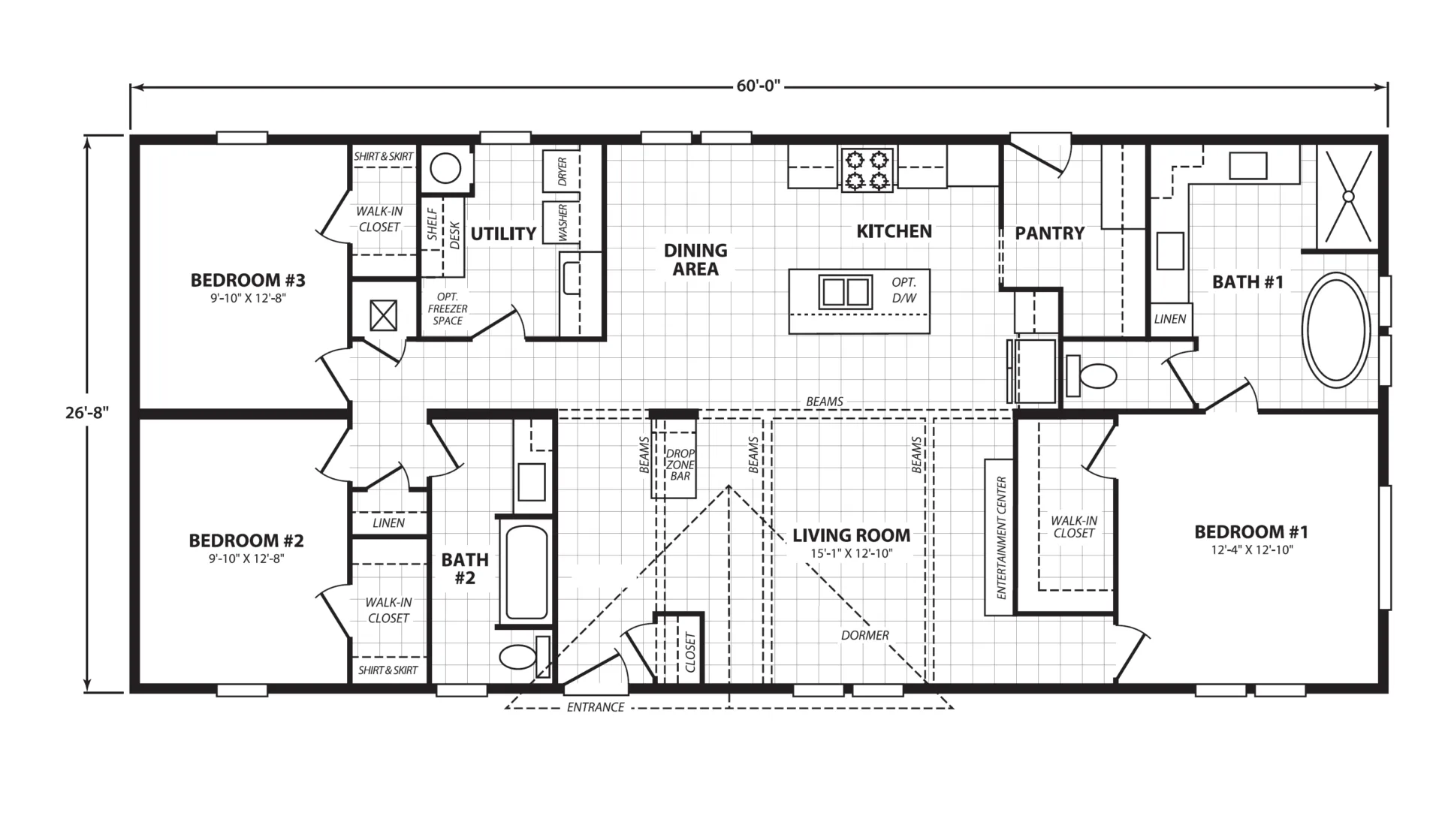

Floor Plan

View full size

Specifications

The Vivid

· Cavco
